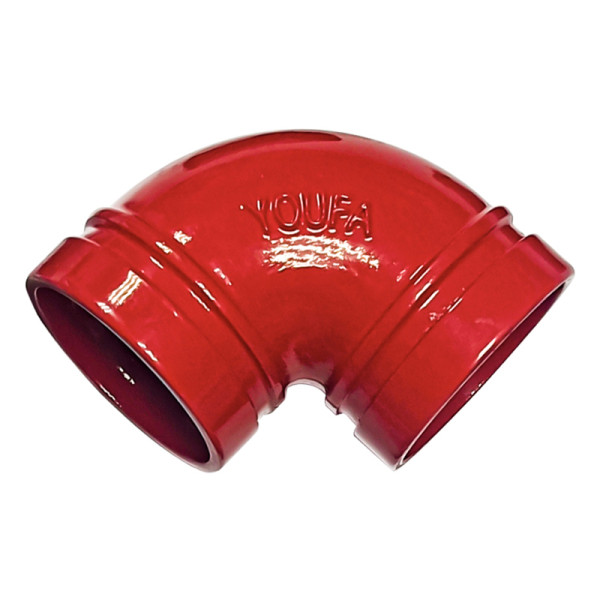

Red Painted 90 Degree Grooved Elbow
| Categories | Grooved Fittings |
|---|---|
| Brand | Youfa Steel Pipe Manufacturer |
| Model | Painted 90 Degree Elbow |
| Application | Fire sprinkler steel pipeline |
| Connection | Rigid Coupling or Flexible Coupling |
| Material | Carbon steel |
| Surface treatment | Red painting |
| FOB port | Xingang port, Tianjin city, China |
| Terms of Payment | L/C, T/T |
| Update Time | Apr 30,2025 |
Detail Information
Groove Fittings Elbow Technical Parameters
| MATERIAL | Carbon Steel |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn | |
| STANDARD | ASTM / JIS / DIN / BS / GB |
| ELBOW DEGREE | 45 degree, 90 degree, 180 degree |

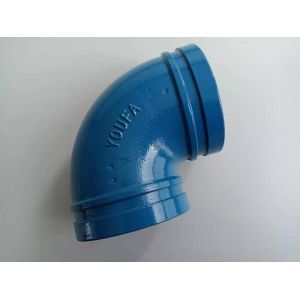

SURFACE | Red Paint, Blue Painted |
SIZE | 1/2"-48"(Dn15-Dn1200) |
CONNECTION | Rigid couplings, flexible couplings, mechanical tees and grooved flanges |
CERTIFICATE | ISO UL FM |
PACKAGE | 1/2" - 2" in cartons; Above 2" in wooden cases. |
Steel Pipe Fitting Elbow Sizes
90° Grooved Elbow Size Chart | |
| Norminal Size (mm/inch) | Outside Diameter (mm) |
| 50 (2) | 60.3 |
| 65 (2-1/2) | 76.1 |
| 65 (3) | 88.9 |
| 100 (4) | 108 |
100 (4) | 114.3 |
125 (5) | 133 |
125 (5) | 139.7 |
150 (6) | 165.1 |
200 (8) | 219.1 |
250 (10) | 273 |
300 (12) | 323.9 |
Groove Pipe Fittings Application
As an advanced pipe connection method, grooved pipe fittings can be installed openly or buried, with both rigid joints and flexible joints. Therefore, it has a wide range of applications. It can be used for fire water systems, air conditioning hot and cold water systems, water supply systems, petrochemical pipeline systems, thermal power and military pipeline systems, sewage treatment pipeline systems, etc.
