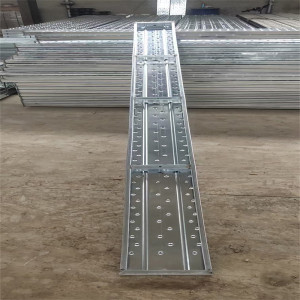

Hot Dipped Galvanized steel plank for kwikstage scaffold Walk Board Platform

Categories	Metal Plank
Brand	Youfa Steel Pipe Manufacturer
surface treatment	pre galvanized
Terms of Payment	L/C, T/T
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

Steel plank specification:

Size/mm	Length/mm	Width/mm	Height/mm	Kg/pc
210451.2	4000	210	45	13.6
210451.2	3000	210	45	10.26
210451.2	2000	210	45	6.93
210451.2	1000	210	45	3.59
225381.2	4000	225	38	13.6
225381.2	3000	225	38	10.26
225381.2	2000	225	38	6.93
230601.8	2500	230	60	16.5
240451.2	4000	240	45	14.87
240451.2	3000	240	45	11.23
240451.2	2000	240	45	7.59
240451.2	1000	240	45	3.94
250501.2	4000	250	50	15.67
250501.2	3000	250	50	11.84
250501.2	2000	250	50	8
250501.2	1000	250	50	4.15

Steel plank with hook

Size/mm	Length/mm	Width/mm	Height/mm	Kg/pc
500501.2	1829	500	50	15.5
480451.2	1829	480	45	13.5
450451.2	1829	450	45	13
500501.2	1219	500	50	12.5
480451.2	1219	480	45	11
450451.2	1219	450	45	10
420451.2	1219	420	45	9.5
450381.2	1219	450	38	12.5
420451.2	1219	420	45	9
330501.2	1219	330	50	9
330501.2	1219	330	50	8.5
330501.2	1829	330	50	11.5

Steel Plank Features:

1) A larger capacity
When the scaffolding geometry and structure is compliant with the relevant requirements, the general single-tube column scaffold bears capacity of up to 15kN ~ 35kN (1.5tf ~ 3.5tf, design value).
2) Easy disassembly, erection and flexible
Easy to adjust the length of the tube, fastener connection is simple,
and thus can adapt to all kinds of plane, elevation of buildings and structures with the scaffold.

3) To compare the economy
Processing is simple, a relatively low investment costs; if well-designed scaffolding geometry, focus on improving working capital utilization rate of steel, the material consumption can be achieved better economic results. Fastening steel frame construction steel per square meter equivalent to about 15 kg.
Glavanized steel walk board steel plankVarious uses: 1. Used for building, hall, bridge, viaduct, tunnel and other formwork inside the top or as the main frame of the flying mold support.
2. Make the internal and external grid scaffolding of high-rise buildings.
3. Working platform for mechanical and electrical installation, ship hull repair and other decoration works.
4. Gateway scaffolding with simple roof trusses can be used to form temporary site dormitories, warehouses or barracks.
5. Temporary viewing platform and stands for the tower.
