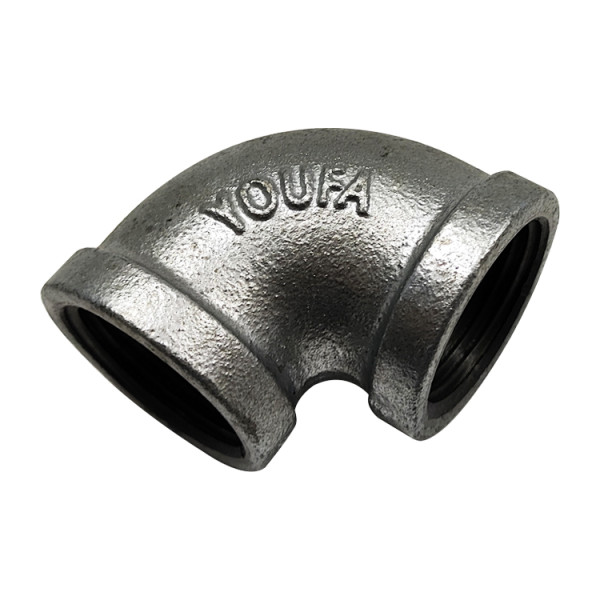

Galvanized Pipe Fittings 90° Equal Elbow
| Categories | Malleable Iron Fittings |
|---|---|
| Brand | Youfa Steel Pipe Manufacturer |
| Model | 90 Equal Galvanized Elbow |
| Surface | Galvanized |
| Special Galvanized Elbow Inner | Lining Plastic Pipe Fittings |
| Material | Malleable Iron |
| Suitable Applications | Water, Oil, Gas, Petro-Chemical |
| Other Types of Galvanized Pipe Fittings | Tee, Reducer, Plug, Cap, Union, Nipple, Coupling.. |
| MOQ | 500 Units |
| FOB port | Xingang, Tianjin port in China |
| Terms of Payment | L/C, T/T |
| Update Time | Apr 30,2025 |
Detail Information
Galvanized Steel Structural Pipe Fitting Elbow Technical Parameters
| MATERIAL | Carbon Steel |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn | |
| STANDARD | EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 |
| ELBOW DEGREE | 90 degree |
SURFACE | Galvanized Zinc Coated |
SIZE | 1/2"-6"(Dn15-Dn150) |
SHAPE | Equal |
CONNECTION | Female Threaded, Male Threaded |
CERTIFICATE | ISO UL Listed FM Approved |
PACKAGE | 1/2" - 2" in cartons; Above 2" in wooden cases. |
Galvanized Elbow Steel Pipe Fitting Size Chart
90° Galvanized Elbow Size Chart | |
| Norminal Size (mm/inch) | A |
| 15 (1/2) | 27 |
20 (3/4) | 32 |
25 (1) | 37 |
32 (1-1/4) | 44.5 |
40 (1-1/2) | 48.5 |
50 (2) | 57 |
| 65 (2-1/2) | 68.5 |
| 80 (3) | 77.5 |
| 100 (4) | 96.5 |
150 (6) | 129 |
Galvanized Steel Pipe Fitting Application
Elbows are essential fittings in piping systems, used to change the direction of the flow.
Equal Elbow is equal diameter elbow to connect two pipes of the same diameter at a right angle (90 degrees). It is commonly used in various applications where a change in direction is needed without altering the pipe size. For example, in HVAC systems, plumbing, and industrial piping, equal diameter elbows help maintain consistent flow and pressure.
Galvanized Pipe Fittings Delivery
