Seamless std carbon steel a234 wpb 4 inch pipe fittings 90 elbow

Share
Categories	Carbon Steel Fittings
Trademark/Brand	Youfa Steel Pipe Manufacturer
Model	114mm
Connection	Welding, Butt-Welding
Standard	ANSI B16.9
MOQ	500 Units
Material	Carbon steel WPB A234
Wall Thickness	SCH40
Surface treatment	Hot Galvanized / Black painting
FOB port	Xingang, Tianjin port in China
Terms of Payment	L/C, T/T
Update Time	Jan 27,2026

Contact Now

Favorites

Detail Information

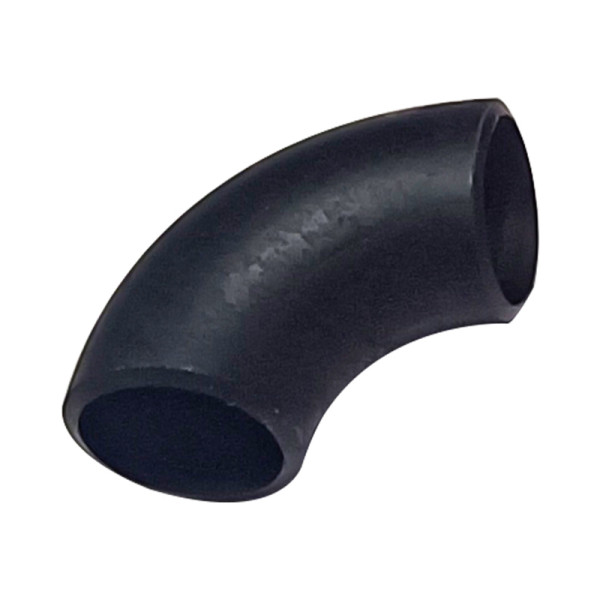

Black Pipe Fittings Elbow Fig.90

90-degree elbow is a crucial fitting in piping systems, designed to create a sharp turn in the direction of the flow. This fitting is essential for redirecting fluid or air in plumbing, HVAC, and industrial applications.

Applications:

Plumbing: Used in residential and commercial plumbing systems to navigate around obstacles and connect different sections of piping.

HVAC Systems: Helps in directing airflow through ductwork, ensuring efficient heating and cooling.

Industrial Piping: Commonly found in various industrial processes where fluid transport is necessary, allowing for changes in direction without significant pressure loss.

Materials: Carbon Steel: WPB

Standard: ASME/ANSI B16.9

Carbon Steel Fittings 90 Degree Elbow Size Chart

Outside Diameter		90 Elbow Unit Weight (Kg)
1/2"	21.3MM	0.08
3/4"	26.7MM	0.1
1"	33.4MM	0.16
1 1/4"	42.2MM	0.25
1 1/2"	48.3MM	0.38
2"	60.3MM	0.65
2 1/2"	73MM	1.29
3"	88.9MM	2.03
3 1/2"	101.6MM	2.45
4"	114.3MM	3.85
5"	141.3MM	6.51
6"	168.3MM	10.1
8"	219.1MM	18.9
Contact with us freely, enquiry other specifications of 90 degree Elbow.
