Adjustable Jack Base and U Head
| Categories | Jack Base |
|---|---|
| Brand | Youfa Steel Pipe Manufacturer |
| Model | Jack Base and U Head |
| Material | Carbon Steel |
| Steel Grade | Q235 |
| Surface | Galvanized |
| Package | in bundles |
| Standard | EN74 |
| Application | Construction building material Scaffolding |
| MOQ | One container about 26 tons |
| FOB port | Tianjin Port |
| Terms of Payment | L/C, T/T |
| Update Time | Apr 29,2024 |
Detail Information
Product Introduction
Galvanized
U Head

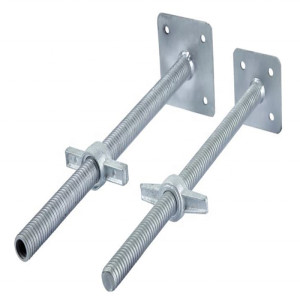

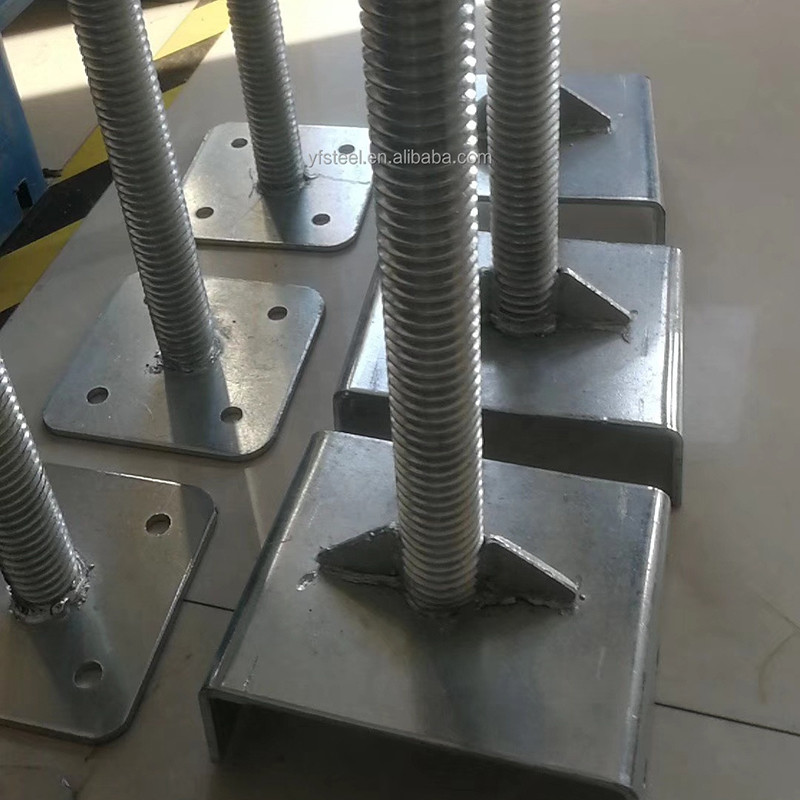

"Jack base" and "U head" are terms related to construction and scaffolding. A jack base is used to support the scaffolding structure, while a U head is used to support horizontal tubes on the scaffolding. These components are essential for the stability and safety of the scaffolding system.
Jack Base and U Head Parameters
Commodity | Scaffolding Adjustable Jack Base and U Head | |||
Type | Jack Base | U Head | ||
Standard | EN74 , AS/NZS1576 ( Material steel grade Q235 ) | |||
Surface | Galvanized | |||
Usage | The jack base is used to provide a stable base for scaffolding, especially on uneven surfaces. It can be adjusted to different heights to ensure the scaffolding is level and secure. | The U head is used to support horizontal scaffold tubes, providing a point of connection and support for the structure. | ||
Shipment | by bulk or load into 20ft / 40ft containers | |||
Delivery time | Within 35 days after received advanced payment | |||
Payment Terms | T/T or L/C at sight | |||
The Product Model Parameters We Provide
|
Type
|
Specifications
|
Base Plate Size
|
|
Solid
|
30x400mm
|
120x120x4 mm
|
|
Solid
|
30x600mm
|
120x120x4 mm
|
|
Solid
|
32x400mm
|
120x120x4 mm
|
|
Solid
|
32x600mm
|
120x120x4 mm
|
Solid | 34x400mm | 120x120x4 mm |
Solid | 34x600mm | 150x150x5 mm |
Hollow | 38x4x600mm | 150x150x5 mm |
Hollow | 38x4x660mm | 150x150x5 mm |
Hollow | 38x4x760mm | 150x150x5 mm |
Hollow | 48x4x600mm | 150x150x5 mm |
Hollow | 48x4x900mm | 150x150x5 mm |
|
Type
|
Specifications
|
Base Plate Size
|
|
Solid
|
30x400mm
|
150x150x50x4 mm
|
|
Solid
|
30x600mm
|
150x120x50x4 mm
|
|
Solid
|
32x400mm
|
120x120x50x4 mm
|
|
Solid
|
32x600mm
|
150x120x50x4 mm
|
Solid | 34x400mm | 120x120x50x4 mm |
Solid | 34x600mm | 150x120x50x4 mm |
Hollow | 38x4x600mm | 150x150x50x5 mm |
Hollow | 38x4x660mm | 180x150x80x6 mm |
Hollow | 38x4x760mm | 165x150x50x5 mm |
Hollow | 48x4x600mm | 150x150x50x8 mm |
Hollow | 48x4x900mm | 200x200x50x8 mm |
High Quality Guaranteed
High Quality Guaranteed
1) During and after production, 4 QC staffs with more than 5 years experience inspect products in random.
2) National accredited laboratory with CNAS certificates
3) Acceptable inspection from third party appointed/paid by buyer, such as SGS, BV.
4) Approved by Malaysia, Indonesia, Singapore, Philippines, Australia, Peru and UK.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
- contact us
Ringlock scaffolding is a type of modular scaffolding system characterized by its speed of assembly, flexibility, and strength.
Steel props are support structures used in construction to support formwork, walls, ceilings, and other structural elements.
Frame scaffolding also known as walkthrough scaffolding, is a versatile and commonly used type of scaffolding system.
